PVC(300/600)

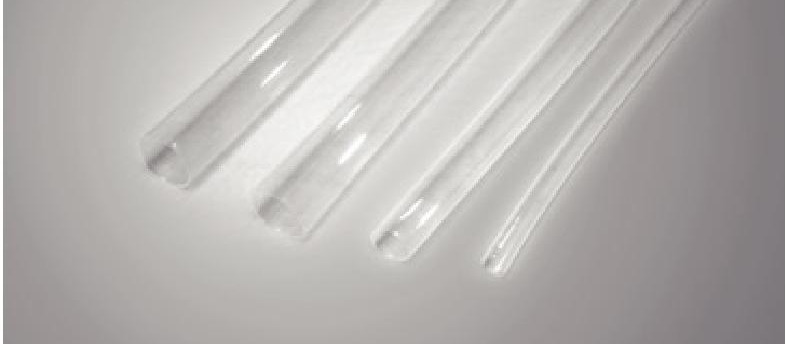

PVC(300/600) Non-Shrinkable PVC Tubing
PVC non-shrink tubing, PVC300 standard / PVC600 thick wall
PVC-20°C ~ +85°C
Applications
Construction & MiningTelecommunications & Electronics
Polyvinyl chloride non-shrinkable tubing. PVC300 is the standard thin wall variant; PVC600 is the thicker wall variant. Full color range for phase identification, harness grouping, and electrical marking. Soft and easy to cut and install — one of the most economical electrical insulation consumables.
Specifications
| Material | PVC |
| Operating Temperature | -20°C ~ +85°C |
| Sizes | 1mm ~ 50mm |
| Available Colors | Black, Red, Blue, Yellow, Green, White, Clear |
| Rated Voltage | 300V / 600V |
| Certifications | UL VW-1 |
